(Seems Protel doesn't know the zero legth pins I used for the DNCs of the 3290/6490.) Please see the List of Parts for the devices contained in the library. The Protel99SE library was generated from the OrCAD lib.
#Protel 99se windows 7 library problem how to
If this is not the case, you will be prompted to do this first How to import Altium library into Protel 99SE? SnapED
The import process requires all files, projects and design workspaces that are currently open in Altium Designer to be closed. Th To import a 99 SE database, select File » Importer Wizard from the File menu. Protel 99 SE comes with extensive schematic and PCB footprint libraries.
#Protel 99se windows 7 library problem full
Protel 99 SE comes with comprehensive libraries of simulation-ready components, with full support for the industry-standard simulation language, SPICE 3f5. You can set up and run mixed analog/digital simulations directly from the schematic. Simulation is also integrated into Protel 99 SE. Using the filter will allow you to find it quicker - enter in the Filter Window *08.
Select CMOS Logic Databook 1988, and then double click MM74HC08 - an AND Gate. Several more Libraries are now available. Double-Click on NSC Databooks.DDB and then click OK. The Protel Schematic Libraries are in C:\Program Files\Design Explorer 99SE\Library\Sch. Click Add/Remove under the Library Window. Finally, check that the net assignment for each split region is correctly assigned, either by double-clicking on each region, or using the Split. After the net assigned to that layer has been disconnected, the layer can be deleted from the layer stack. Once this is done, select all objects on the old plane layer and delete them.
#Protel 99se windows 7 library problem update
(ABF-DEV.COM) License:Shareware ($49.00) File Size:804 Kb The easiest way to update 99 SE split plane definitions in Altium Designer is to add a new plane layer, then trace the existing regions onto the new plane. ABF Visual Components Library is a huge components set for Borland Delphi and C++Builder, that contains more then 60 components and controls for different purposes. Save the changes, run Protel 99 SE, try loading a library, should workĪBF Visual Components Library v.3.3. A NOP instruction is 90 in hexadecimal, hence the change. Change all bytes from offset 2690E to 26917 (= a total of 10 bytes that need to be changed) to 90. Click on the schematic component name in the library list that you want to add the footprint to, click on edit and when the editor opens, click on description, type in the footprint reference from the footprint library in the box and save the modified library So: get yourself a hex editor (I use HxD, it's free) and edit the Client99SE.exe file.
#Protel 99se windows 7 library problem install
Do not uninstall the existing installation of Protel 99 SE before installing the Service Pac actually, I have tried several versions and several times to install but the results remain like that, where is my mistake, I can only use the default library miscellaneuos, for example, requires only 40-pin DIP alone can no 2,708. The Service Pack modifies the existing Protel 99 SE files.
#Protel 99se windows 7 library problem trial
Compatible with both the licensed and trial versions of Protel 99 SE, but not suitable for Protel 99. To install the Service Pack run the downloaded file and follow the instructions. Protel 99 SE Service Pack 6 Information Installation Notes.

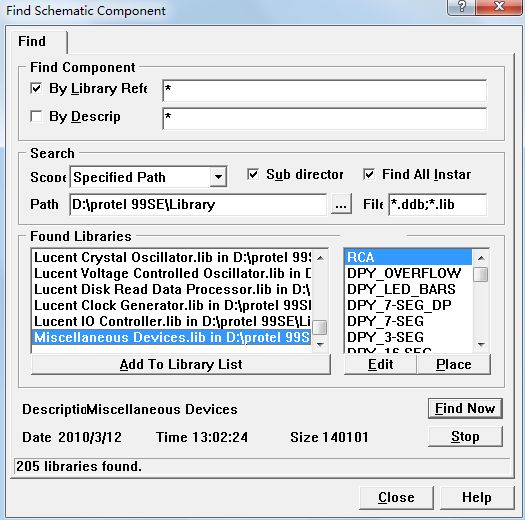

Click on a library name to select it and all the components that belong to that library are listed in the lower scroll box.All libraries in the current library list are listed in the upper scroll box. But, a call to the windows function SHGetPathFromIDListA corrupts the memory where the filename is stored (it puts a zero where the string starts. The library dialog tries to concatenate the filename and path of the selected library file to obtain a full path to the library file that you want to add. Ok, I just spent a long day debugging Protel 99 SE (Service Pack 6) in OllyDbg to solve the problem of not being able to load the library files in Windows 7 ('File not recognized'). How to import Altium library into Protel 99SE? Get support from our professional team and find the answer to any questions in SnapEDA's free Q&A forum Ok, I just spent a long day debugging Protel 99 SE (Service Pack 6) in OllyDbg to solve the problem of not being able to load the library files in Windows 7 (File not recognized).
